Description
Introducing the new Foil Drive Assist MAX foil kit, the flagship model for ultimate hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!
This incredible kit includes everything you need to transform your existing hydrofoil and board into an electric assisted foiling machine.
With a Universal Mast Adaptor that suits 99% of foil masts available, and the V2 Motor, featuring a standard 20cm cable length, this kit is designed for performance. Ultimate customization is a breeze with the new Removable V2 Motor Cable, offering cable lengths that are easily interchangeable.
Plus, enjoy seamless Bluetooth connectivity to the Foil Drive Mobile App, putting control right at your fingertips.
Experience the thrill of foiling like never before with Foil Drive’s cutting-edge technology!
Specification:
*Max Thrust:27.5kg (60.6lbs)
*Weight Range:3.4 – 4.5kg (7.4 – 9.9lbs)
Max Dimensions:L525 x W250 x H50mm
Min Dimensions:L415 x W250 x H50mm

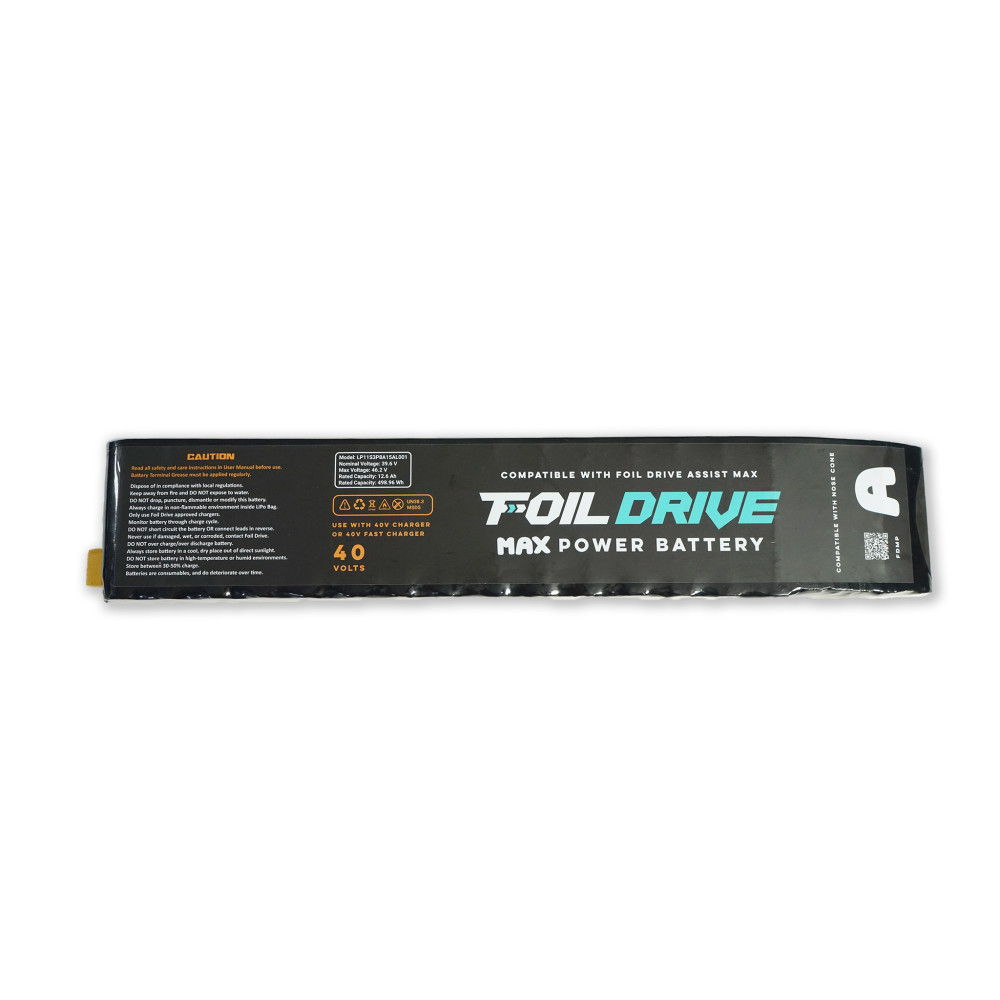

The Foil Drive MAX Power Battery is the largest battery with 498Wh capacity. This offers the longest run time with for those looking for high power performance.
As with all Gen 2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.
The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.
Only compatible with Foil Drive Assist MAX.

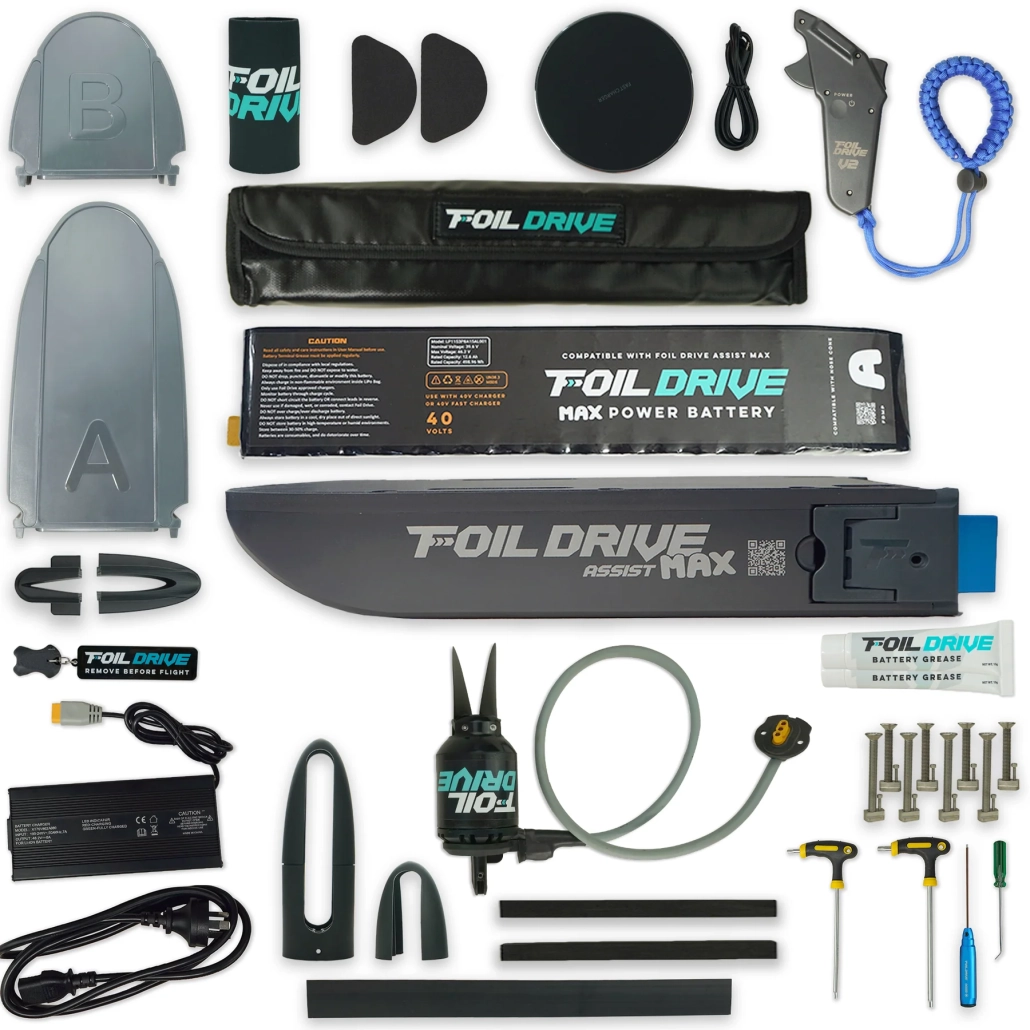

Foil Drive Max Gen 2 supplied with:
- *Choice of Battery with Lipo Bag*

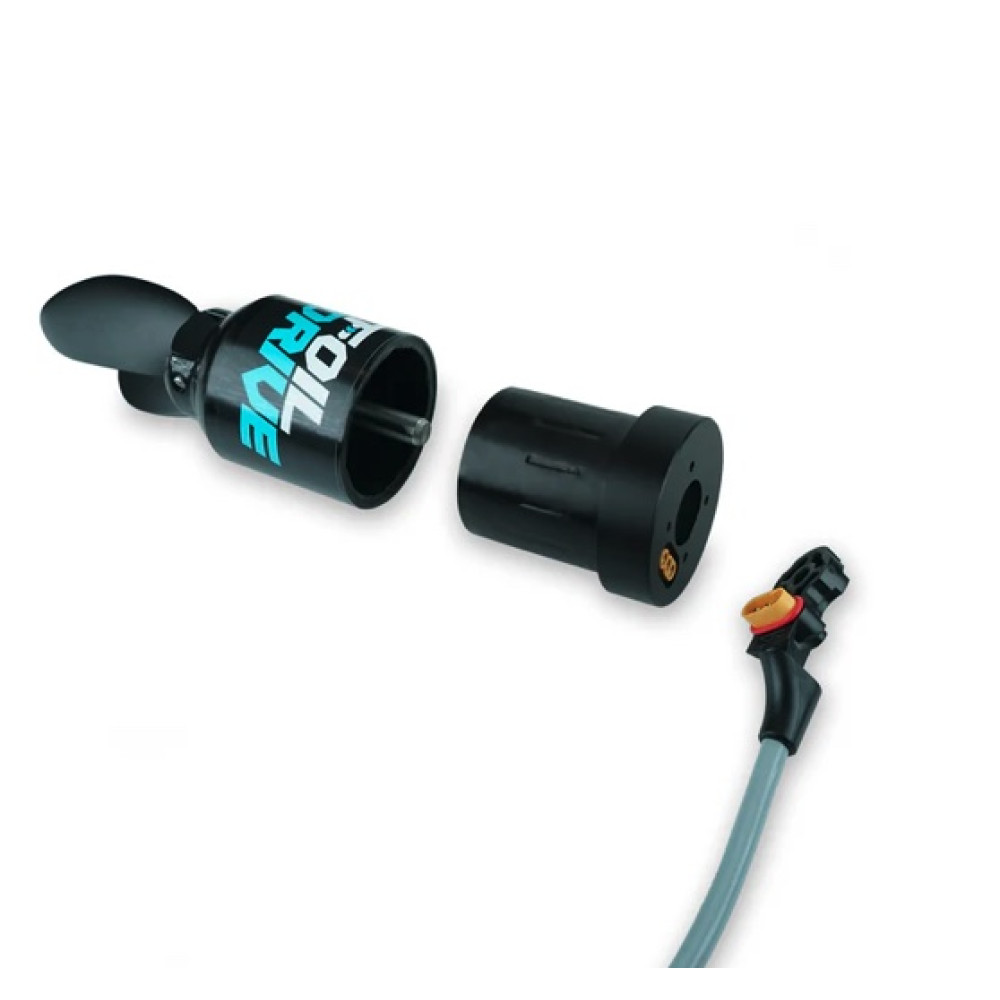

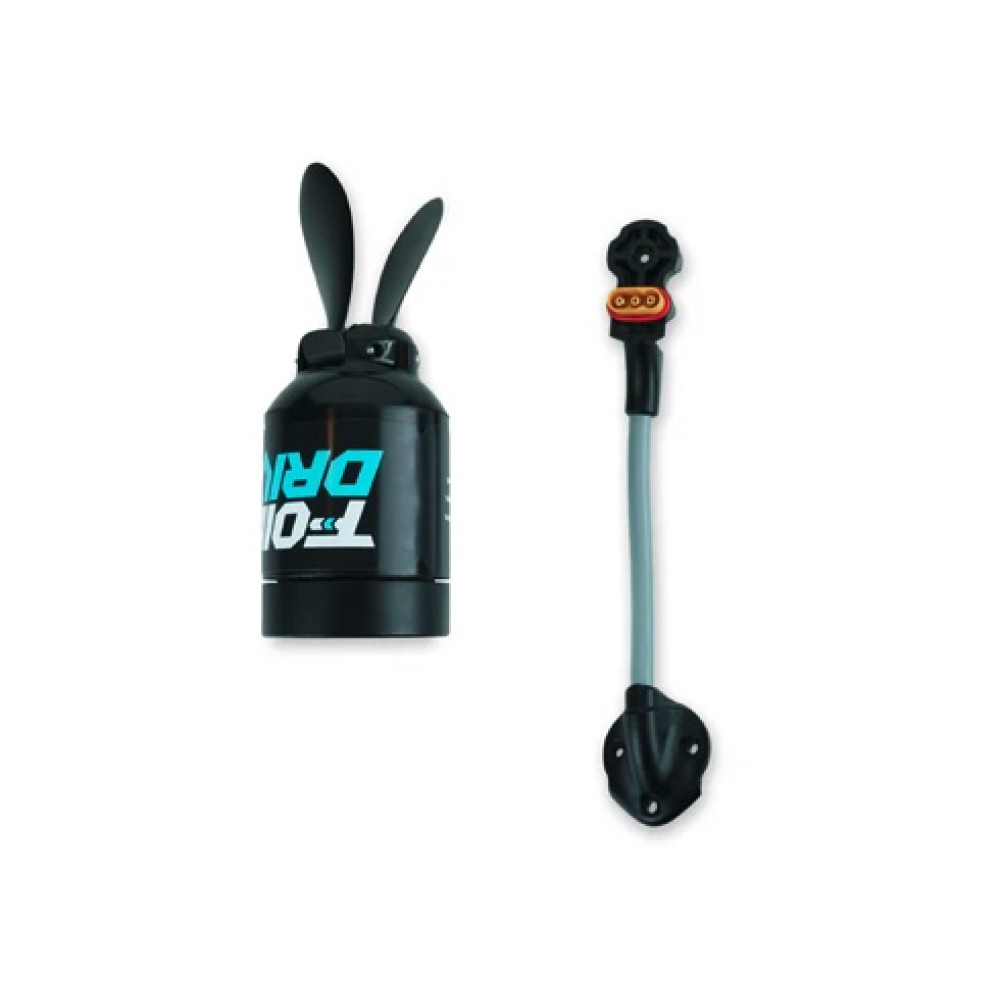

- *Supplied with 20cm Cable length with Gen2 v2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
- *Universal Mast Adaptor*

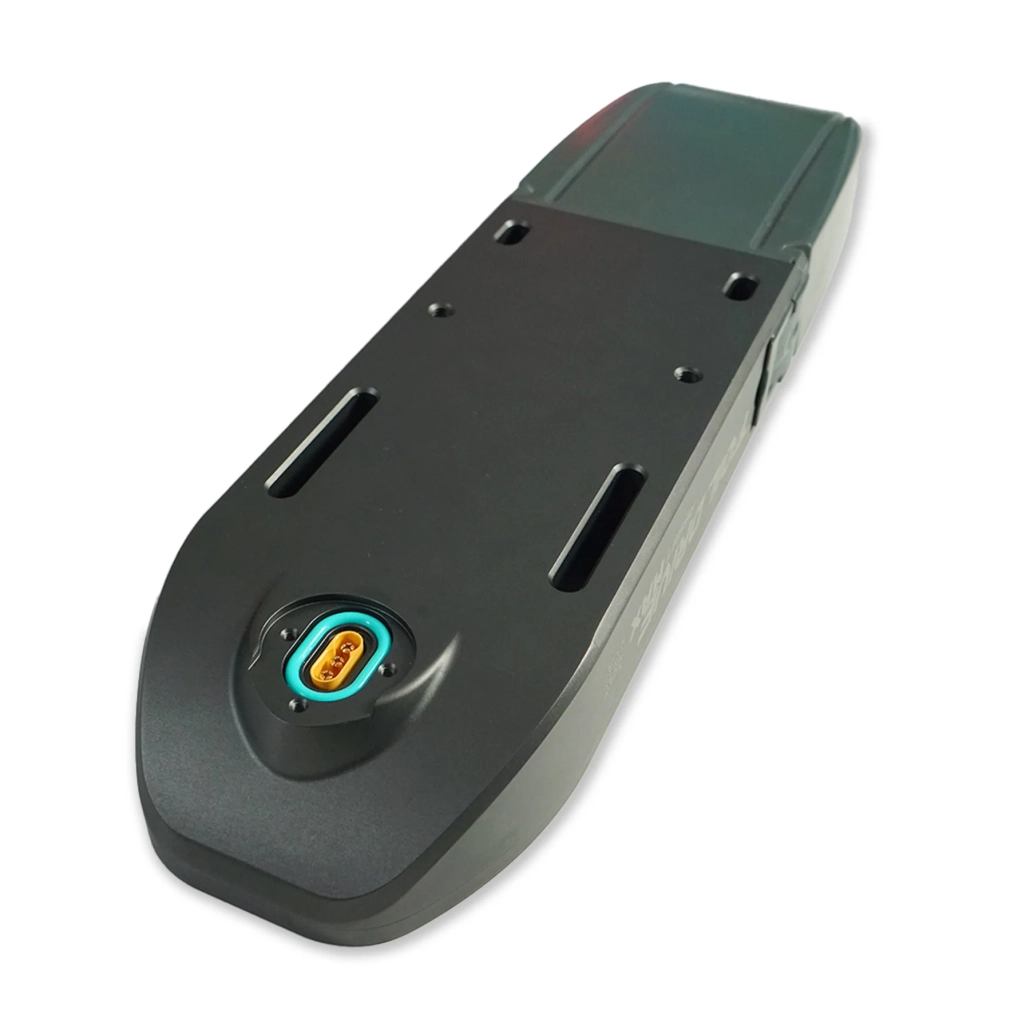

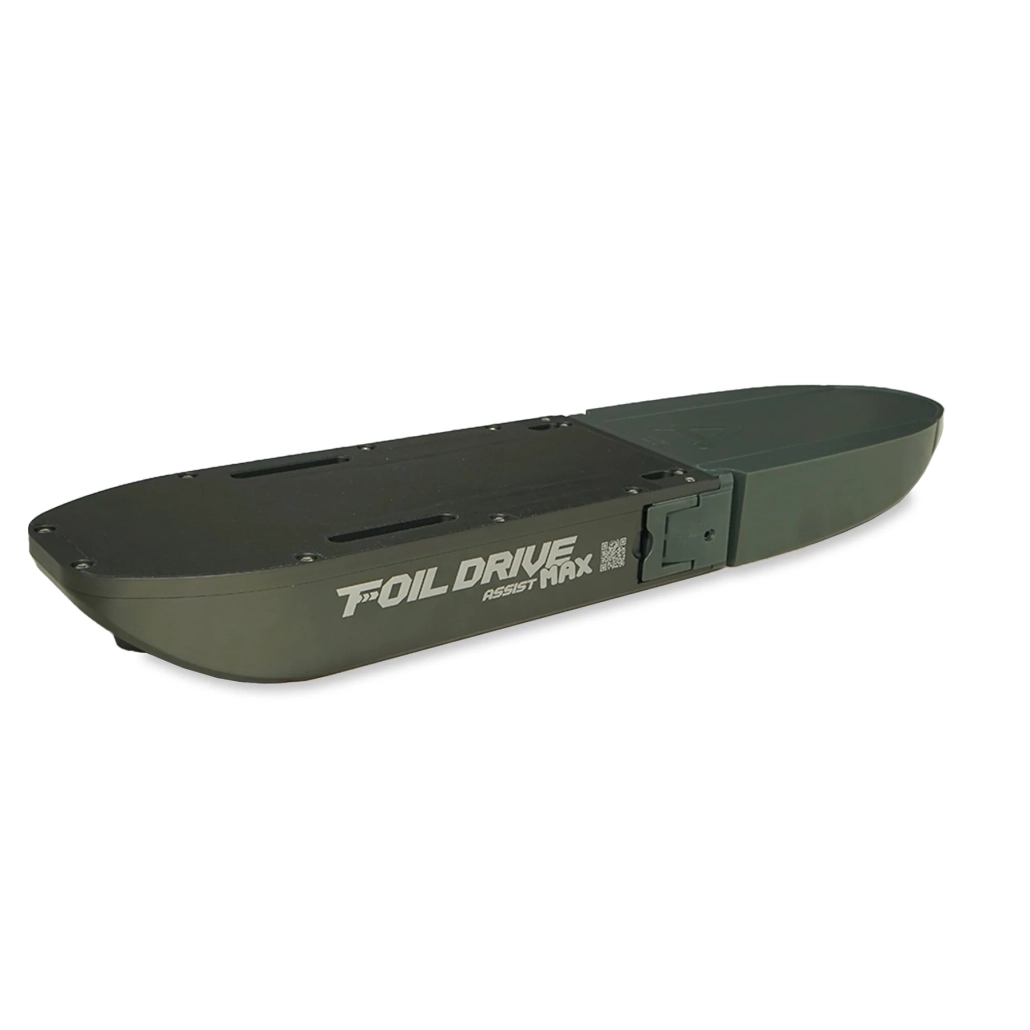

- Foil Drive Assist MAX Electronics Box

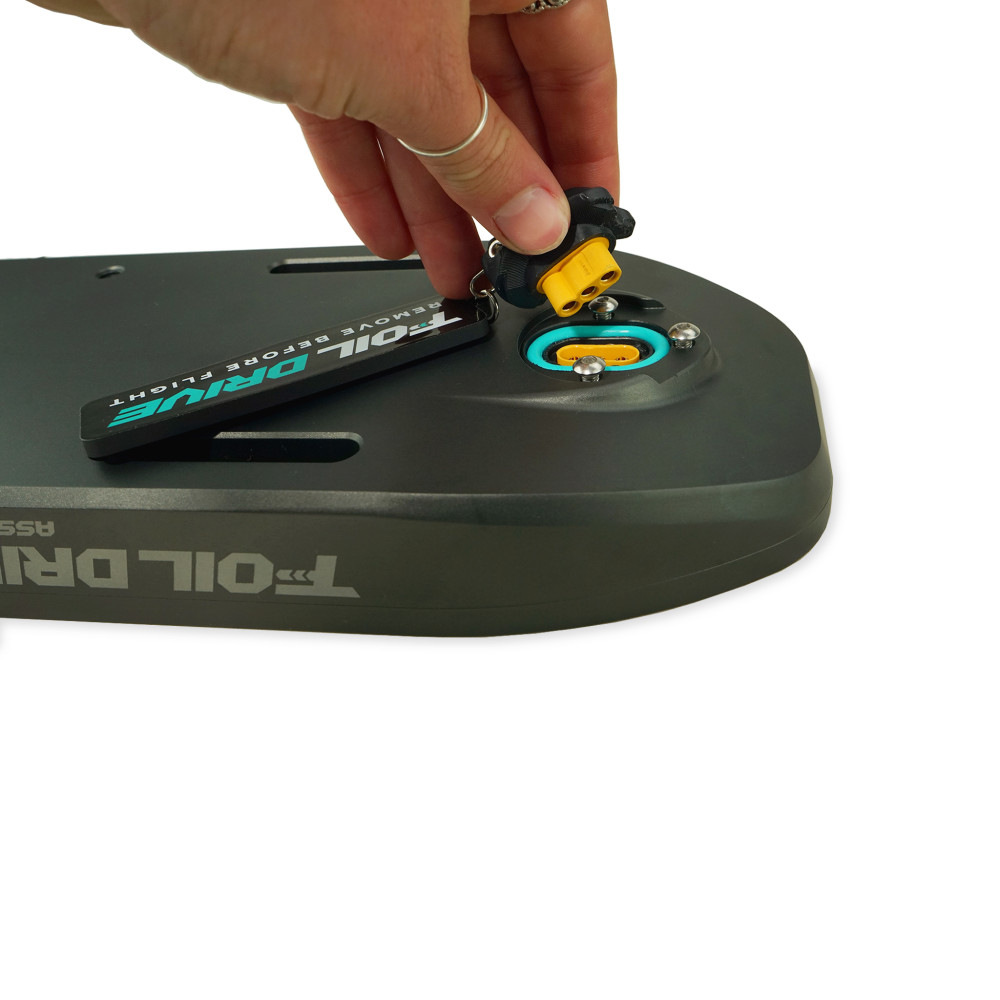

- Motor Plug Protector with Keychain
- Foil Drive Nose Cone A
- Foil Drive Nose Cone B
- Foil Drive Universal Motor Pod – Rear
- Foil Drive Universal Motor Pod – Short Nose
- Foil Drive Universal Motor Pod – Long Nose
- Foil Drive v2 Wireless Throttle Controller
- Foil Drive Controller Wrist Strap
- Foil Drive Mast Cable Guide 23cm
- Foil Drive Controller Wireless Charge Pad
- Micro USB Cable
- 40v Standard Foil Drive Charger 4amp
- 4x Mast Track Foam Inserts
- 2x Nose Cone Rocker Pad
- 2x Battery Grease
- 4x M8 Assist MAX Mast Plate Bolts 80mm
- 4x M6 Assist MAX Mast Plate Bolts 80mm
- Foil Drive 2.5mm Driver
- Torx T40 Tee Handle Driver
- Torx T30 Tee Handle Driver
- Foil Drive Cleaning Cloth

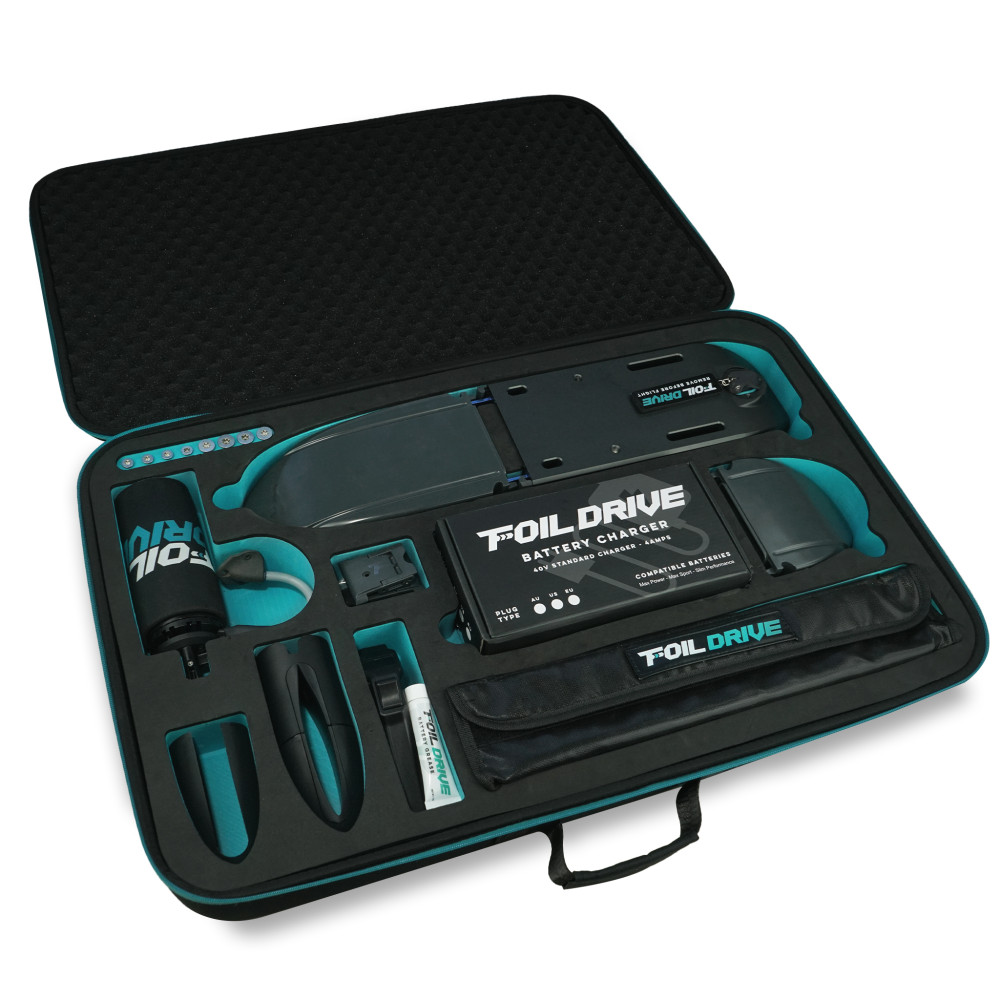

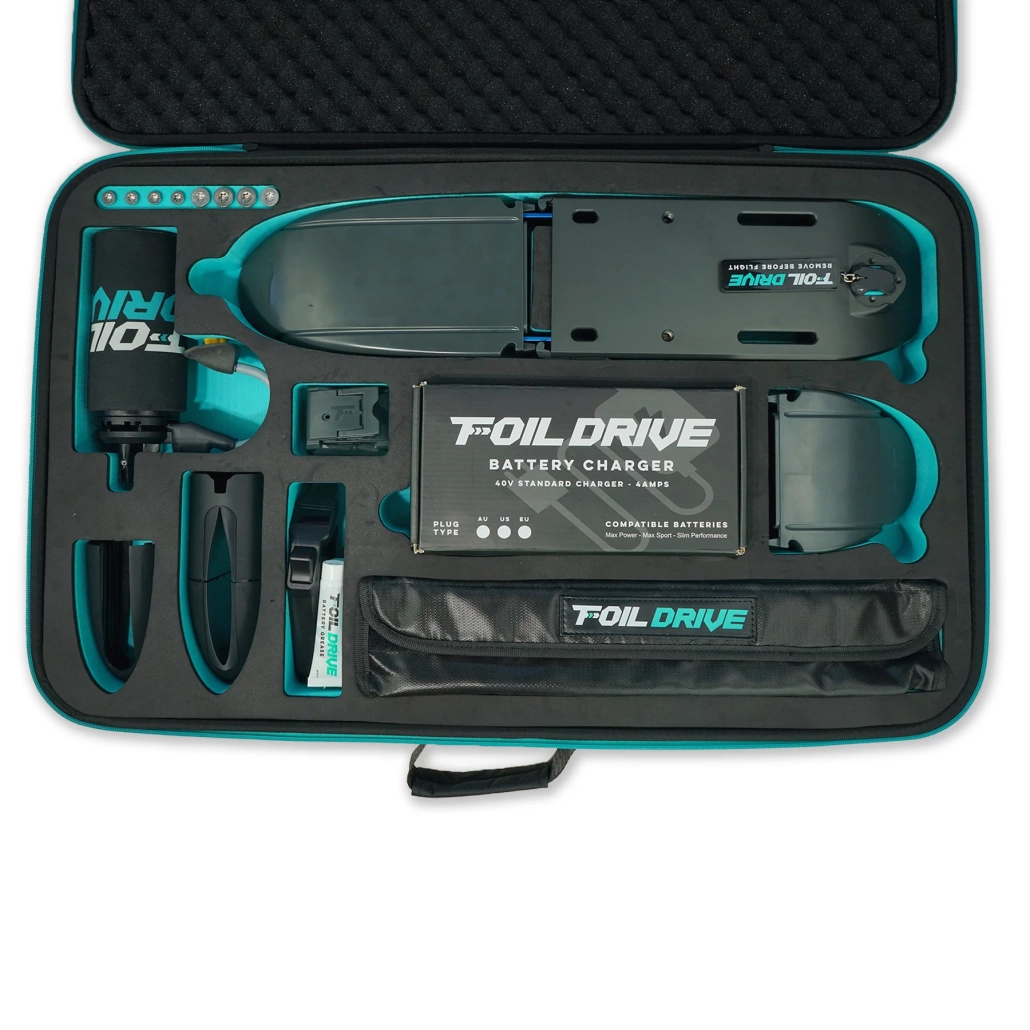

- Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals – Foil Drive Assist MAX
- 2x Latch Assembly – Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
